3OSP5-230E | Up to 230ft, 4.8 GPM, 0.4HP, solar submersible pump, with external MPPT controller
3OSP5-230E | Up to 230ft, 4.8 GPM, 0.4HP, solar submersible pump, with external MPPT controller - 3OSP5-230E Pump Kit Only is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Warranty
Warranty
Solar water pump sold by OmniHydro are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of manufacture.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
3OSP5-230E | Up to 230ft, 4.8 GPM, 0.4HP, solar submersible pump, w...
The 3OSP5-230E solar submersible pump is built for wells, boreholes, and reservoirs. It delivers up to 4.8 GPM flow and reaches a 230 ft max head, making it ideal for deep-well and high-lift water needs.
This pump uses a 0.4 HP (300W) motor and 304 stainless steel housing for strength and corrosion resistance. It includes an MPPT controller, dry-run protection, and a soft-start system that increases pump life and ensures smooth operation.
You can use this system for:
-
Agriculture – irrigation and crop watering
-
Residential – reliable home water supply
-
Off-grid living – eco-friendly water pumping
-
Reservoirs and farms – dependable, low-maintenance solutions
Powered entirely by the sun, this solar pump is efficient, durable, and easy to maintain.
-
Model3OSP5-230E
-
Power
-
Voltage Range
-
Maximum Head
-
Maximum Flow
-
Outer Size
-
Controller
-
Materials
-
Solar Panel
-
Solar Model
-
Open Circuit Voltage
-
Maximum Voltage
-
Peak Power
-
Quantity
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

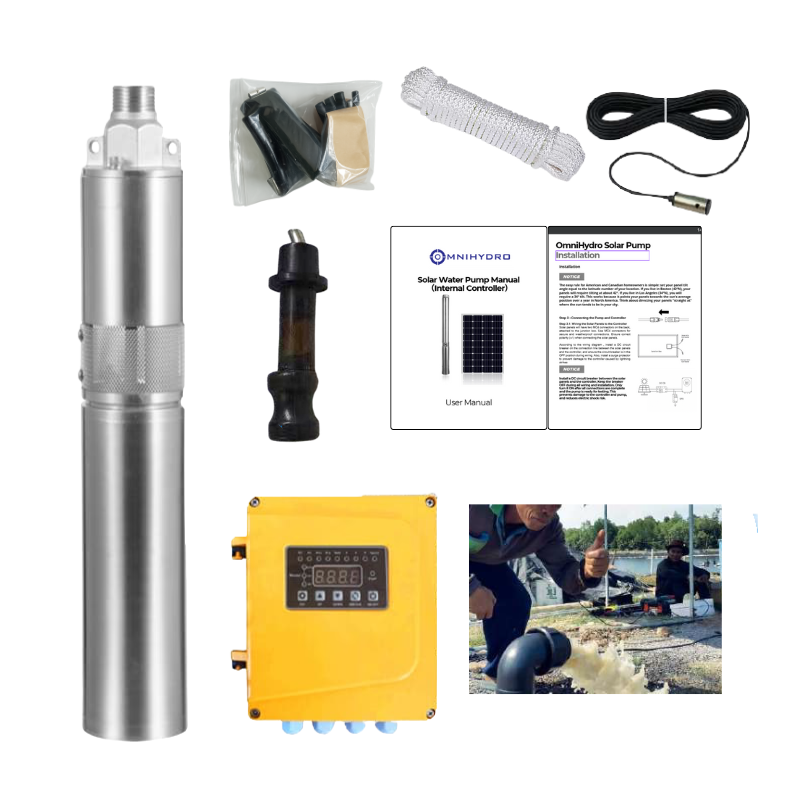

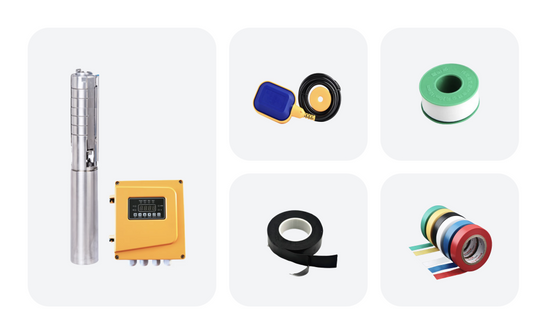

What's inside the solar pump kit?
• 1* 3inch DC solar centrifugal pump with 1* 1.5m cable
• 1* Pump controller with MPPT function• 1* Electric float switch for water tank
• 1* Waterproof adhesive tape
• 1* PVC electrical adhesive tape
• 1* PTFE tape
